Thread tool is broken

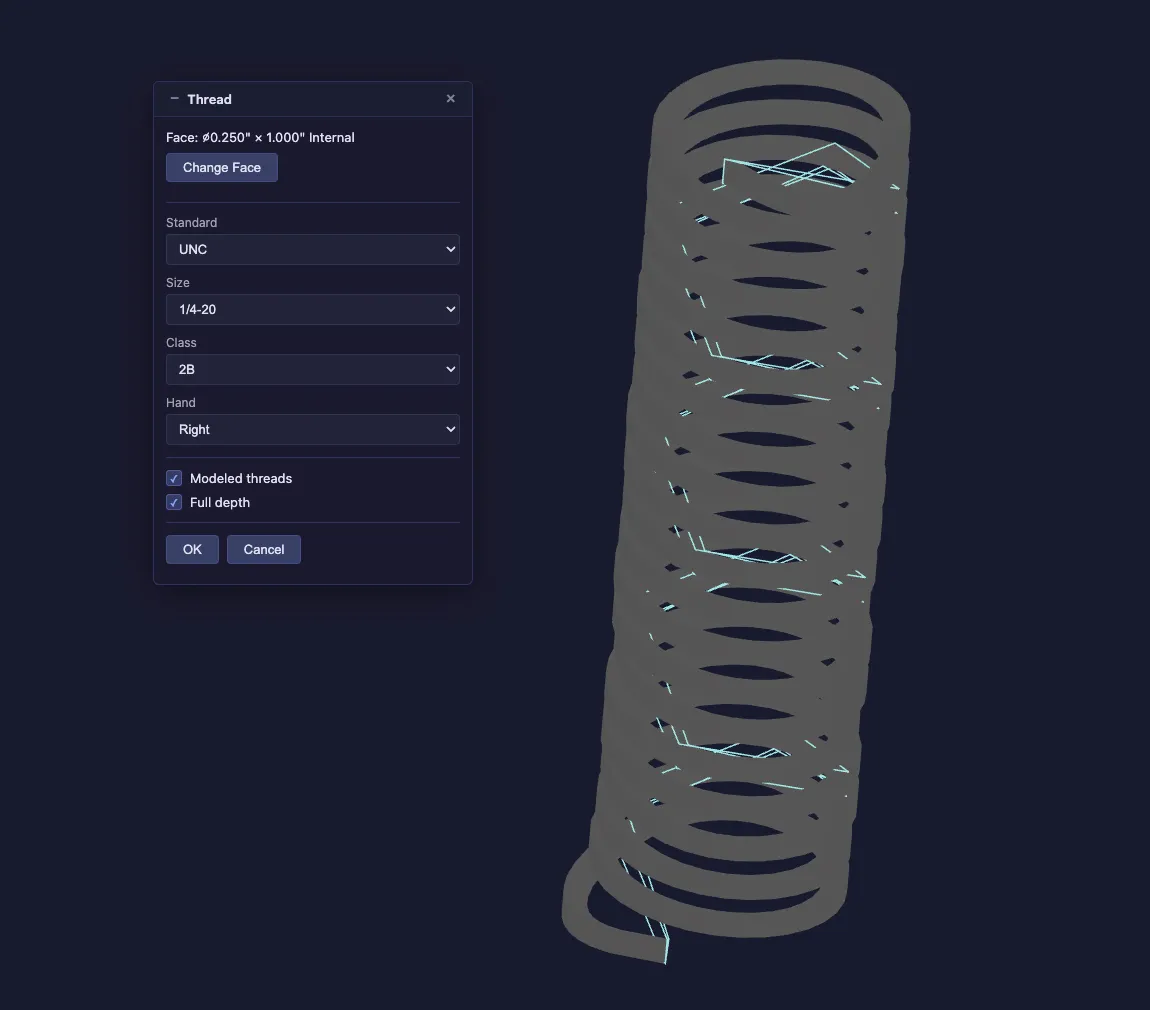

Here's a screenshot of the problem

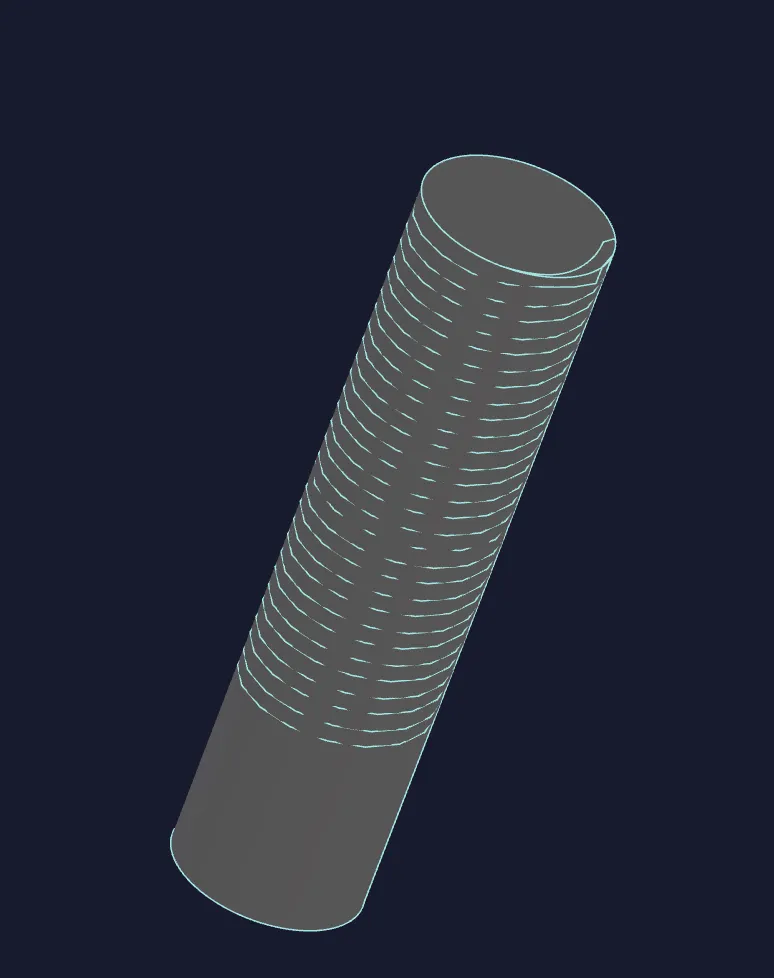

Even drawing a 60 degree thread profile on pitch diameter with the helical tool fails miserably so we have B-rep engine issues that need sorted before these tools will work properly
