Post feed rate issue
Joel Steiner8 days agoEdited21 comments
LinuxCNC QtPlasmaC post
- Nest some parts and generate g-code and post to file.
- Nest some more parts, and post to another file
The 2nd time I post, I invariably get 250 inches per minute feed rate. I am using a tool that's supposed to be 90 ipm but JetCAD insists on posting 250 ipm.
21 Comments
showing 1–5 of 21Did this just begin happening after an update? Let me know version you're running right now
2.2.5 on Windows, presently. I'm pretty sure this has been present in at least a couple versions. I can upgrade to latest and try again if you'd like.

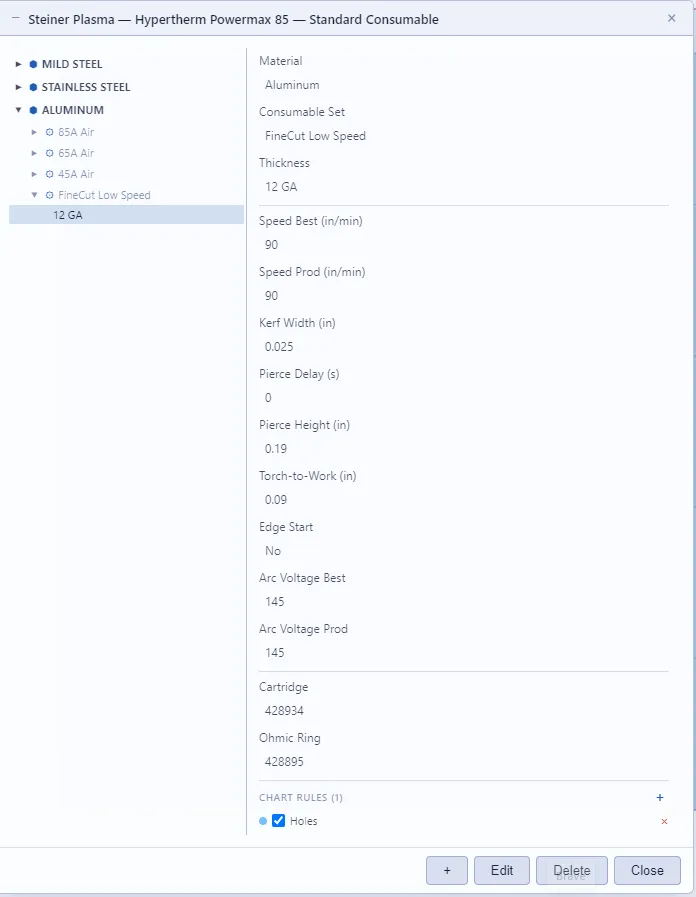

Also I don't know if this makes any difference but I'm using a custom tool I created.
No, no need for you to update right now. The last few releases where for the GcodePilot workspace. We have a couple machines up and running cutting parts with it. The first machine with JetCad3 as the CAD/CAM/Control package has been sold and is currently being built by one of the OEM partners.
Would you mind going to edit->machines and click on any of the config sections in the machine you're posting from then click Export and attach that resulting JCM file here. That contains everything I need to reproduce this with your custom cut chart.
